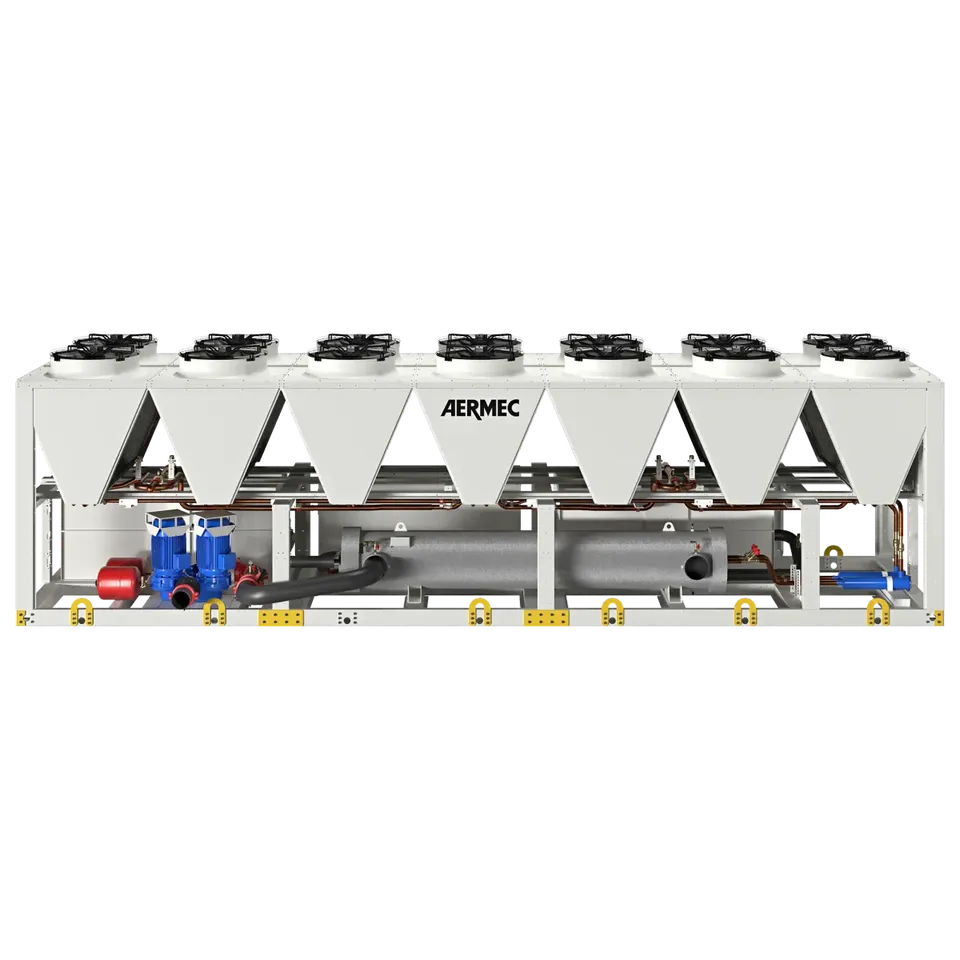

AERMEC NSMJ FC
Outdoor unit
Outdoor unit for the production of chilled water, equipped with variable speed screw compressors with integrated inverter, specifically designed for the use of the R513A refrigerant.
Supplied to order — the manager will confirm the lead time
The price depends on volume and configuration — we send a quote within one working day.
Specifications
Capacity and efficiency
- Cooling
- 281.3–1,259.1 kW
- Холодопроизводительность серии
- 281.3–1259.1 кВт
- Мощность в режиме фрикулинга
- 310.6–973.1 кВт
Refrigerant circuit
- Refrigerant
- R513A (XP10)
- Compressor
- Inverter twin screw compressor
Design and dimensions
- Установка
- Наружная установка
Other
- Особенности
- Фрикулинг, Осевой вентилятор, Кожухотрубный теплообменник, Ночной режим, Для 2-трубных систем
- Опции
- Рекуперация тепла, Насосная группа, Малошумная версия, Работа в сети, Поддержка Modbus, Подключение к интернету
AERMEC NSMJ FC
Outdoor unit for the production of chilled water, equipped with variable speed screw compressors with integrated inverter, specifically designed for the use of the R513A refrigerant.
Outdoor unit for the production of chilled water, equipped with variable speed screw compressors with integrated inverter, specifically designed for the use of the R513A refrigerant.
The units are equipped with helical fans, microchannel condensation coils, tube beam evaporator and electronic expansion valve.
These liquid coolers are equipped with dedicated free-cooling water coils and are particularly suitable for applications where the cooling load is constant throughout the year, or when the outdoor temperature is lower than the temperature of the return liquid in the system.
In free-cooling mode, the liquid is cooled directly by the external air, progressively reducing the operation of the compressors until they are completely deactivated, resulting in considerable energy saving.
The base, the structure and the panels are made of galvanised steel sheet painted with polyester powders, ensuring robustness and resistance to atmospheric agents.
A condensation control device optimises operation according to the operating conditions.
Thanks to the careful design of the components and the use of variable speed technologies, the machine ensures maximum energy efficiency, reliability and flexibility in all working conditions.
Where it is used
- Business centre
- Industrial
